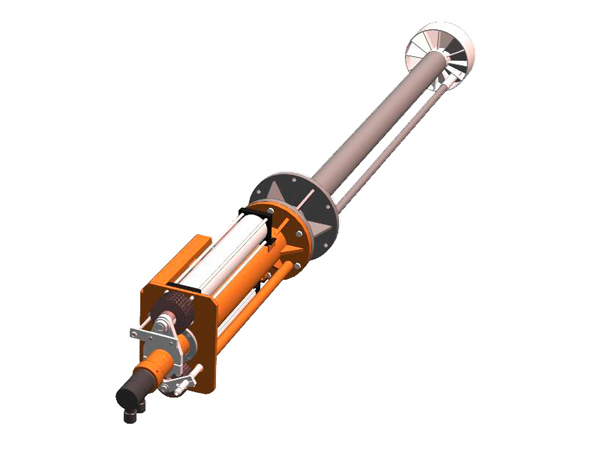

1. Product Introduction

Working principle: Compressed air enters the cylinder through the solenoid valve to transmit its pressure to the piston, and then the piston rod drives the oil gun or ignition gun to hit the rod. At the same time, the stroke switch is used to achieve the reversing action of the solenoid valve, and then the cylinder piston drives the oil gun or ignition gun to complete the forward and backward actions of the oil gun or ignition gun.

Structure: This series of pneumatic thrusters mainly consists of air cylinders, pistons, travel switches, electromagnetic valves, impact rods, push rods, and other components.

Features: Compact structure, good performance, stable operation, low noise, small size, beautiful appearance, fully sealed dustproof structure, convenient installation, operation and maintenance, easy to control operation.

2. Model and Technical Parameters Table

Note: In the model, □ refers to the forward and backward stroke L (mm) of the propeller.

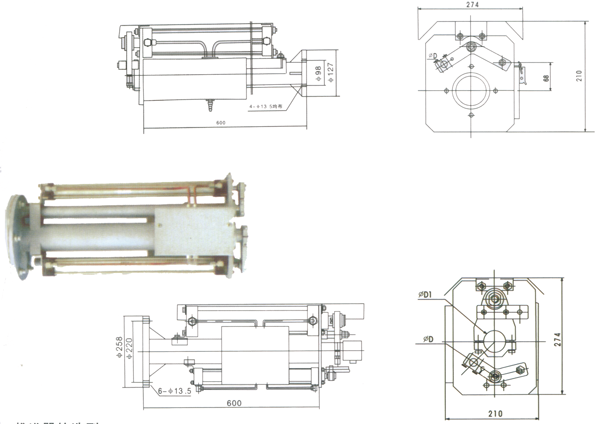

3. Product structure diagram
