JNDH-20 high-energy igniter
product details
Performance characteristics
technical parameter

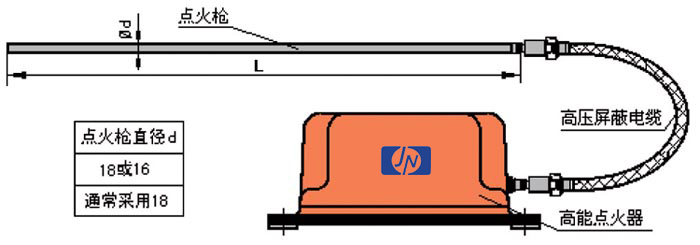

The high-energy ignition device consists of three parts: a high-energy igniter, a ignition gun, and an ignition cable. It can be directly used to ignite natural gas, liquefied petroleum gas, light diesel, and heavy oil. This device has the characteristics of low discharge voltage, large spark energy, corrosion resistance, and easy operation. It is widely used in electric power, metallurgy, petrochemical industry, industrial boilers, and other fields.
JNDH-20 high-energy igniter is made of cast aluminum shell, with good sealing performance, waterproof, moisture-proof, dustproof, and impact resistant.
Performance parameter table
model | Energy storage | input voltage | output voltage | Spark frequency | Protection level | Shell form | Suitable ignition fuel |
JNDH-20C | 20J | 220VAC | 2500VDC | 12次/s | IP55 | punching press | Light diesel oil, crude oil, heavy oil |
JNDH-20 | 20J | 220VAC | 2500VDC | 12次/s | IP65 | cast aluminium | Light diesel oil, crude oil, combustible gas |
JNDH-20B | 20J | 220VAC | 2500VDC | 12次/s | IP65 | iron casting | combustible gas |
